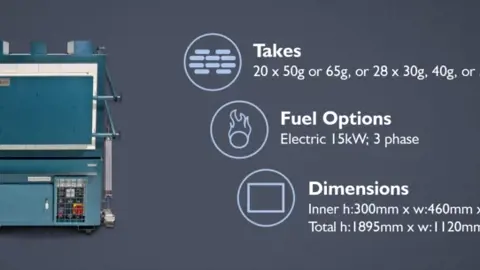

Model EMF-F

Our Fusion Furnace range is available in a variety of sizes that are able to take a wide range of crucibles.  Our engineers work closely with our customers to select the right furnace for their requirements.

Key Benefits

  • Uses a No. 6 Muffle.
  • Takes 20 x 50g or 65g, or 28 x 30g, 40g & 55g Crucibles.
  • Easy to maintain and operate.
  • Compatible with “Multi-pour” loading / unloading system.
  • Built to Industry Standards Technical Specifications.



Technical Information

Construction

  • Cabinet is 2 mm zinc anneal sheet steel, lined with fire bricks and backed with Superwool insulation board.
  • The furnace is mounted on a console fabricated from 2mm zinc anneal sheet and finished in Hammerfin blue enamel.

Internal Dimensions

  • No. 6 Muffle 300 mm high x 460 mm wide x 580 mm deep.

Electrical Requirements

  • 15kw, 3 Phase. (NOTE: Voltage is customised to destination country of the furnace).

Heating Elements

  • 12 x Silicon carbide elements rated at 15 K.W. Total, 3 phase.
  • Power supply to the elements is per a multi-tapped double wound transformer.

Temperature Control

  • Electronic, Automatic control.
  • Type K Thermocouple.
  • High Temperature Alarm output
  • Fitted with a 7 day timer.
  • Fitted with Over Temperature Controller

Door Operation

  • Pneumatic rising. Operated by foot control.



Spare Parts

For a recommended spare part list for this particular model, please click here.



Quality

Fusion Furnaces are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.



For more information, contact us today.
